Ballsum

Ballsum provides innovative tool setters to improve the efficiency of your machine tools.

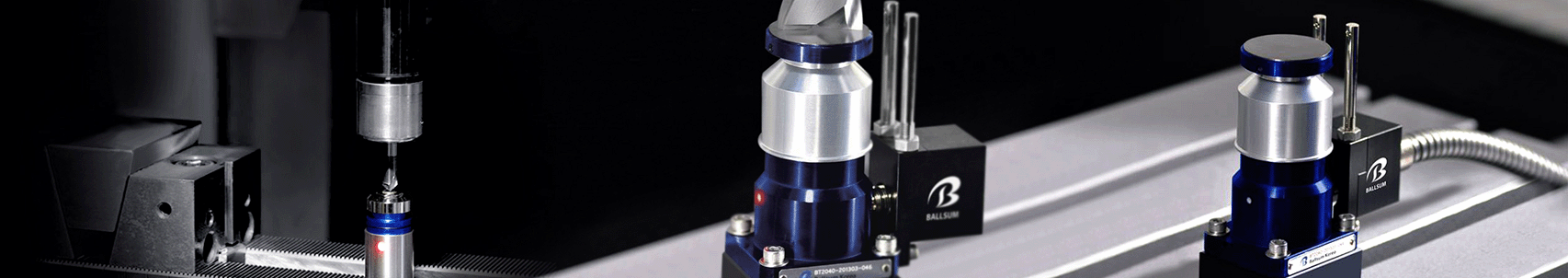

Ballsum tool setter is often placed in a CNC machine equipped a automatic tool changer. Ballsum tool setter can measure the size of tools before cutting begins, and check the tool wear-out or breakage during the CNC machining operation.Ballsum tool setters offer you an automated tool setting process, saving human power , increase effiency, and error detection in realtime, avoid manufacturing malfunction products. Ballsum tool setter is a necessities of each CNC machines

Specification



Features


Replacement head (Head Diameter : Ø40)

Only the head can be replaced easily.

Replacement cycles range from 5 to 10 years

Replaceable in 5 min.

No change in precision when replacing the head.


Detachable cable

Main body can be replaced in case of product loss.

Body replacement takes approximately 20 min.


Ball slider core

Decrease the effects of vibration and temperature changes

Increases durability, life span, and maintains high density.

Setting existing tools


Measuring tool length

Check tool break




Applications

사하CNC 9.jpg


Videos



Accessories

Standard Accessories

BT 2040

Air Kit


Joint Box

Base Block

6P Cable

Steel Flexible
